Foil Stamping Guide: Stamp, Die, Foil & Paper Stock Explained

Learning about foil stamping, also known as hot stamping, is an important step to further expand your understanding of custom printing methods. This guide has everything you need to know about hot stamping. Let’s uncover the details for an accurate and comprehensive understanding.

TLDR

Foil stamping is a printing process that uses pressure, a heated stamp, a heated die, and metallic paper (foil) to create a permanent design on a substrate (also known as paperstock). Here’s what the die, foil, and stamping process is all about.

The Die:

A metal plate (usually brass, copper, or magnesium) is engraved with the custom artwork.

The Foil:

A thin polyester film carrier coated with pigmented or metallic layers (gold, silver, holographic, etc.).

Hot Stamping Process:

1. The die is heated to a specific temperature.
2. The foil is positioned between the die and the paperstock
3. The machine presses the heated die into the foil.
4. The heat activates the adhesive layer on the foil, bonding the design to the surface of the substrate.

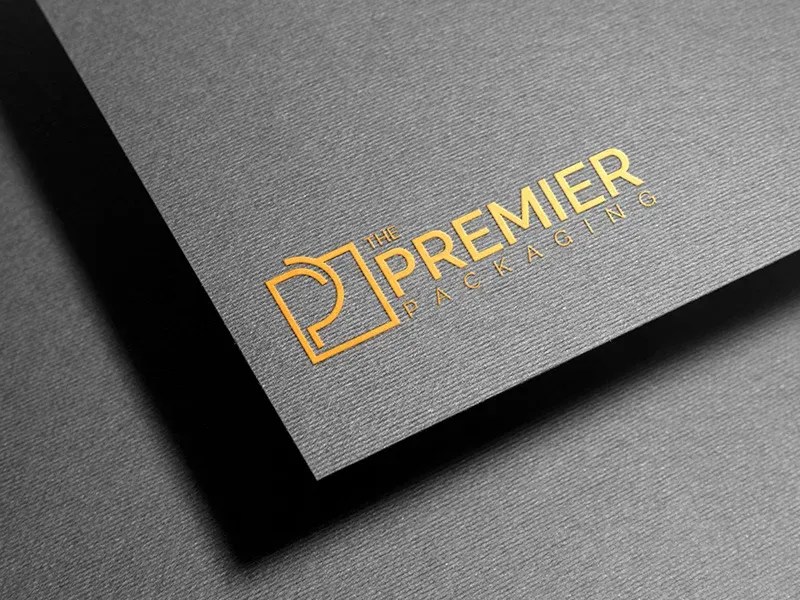

After the process is finished, you’ll get a high-contrast, glistening shiny finish that is opaque and often slightly debossed (indented) into the material.

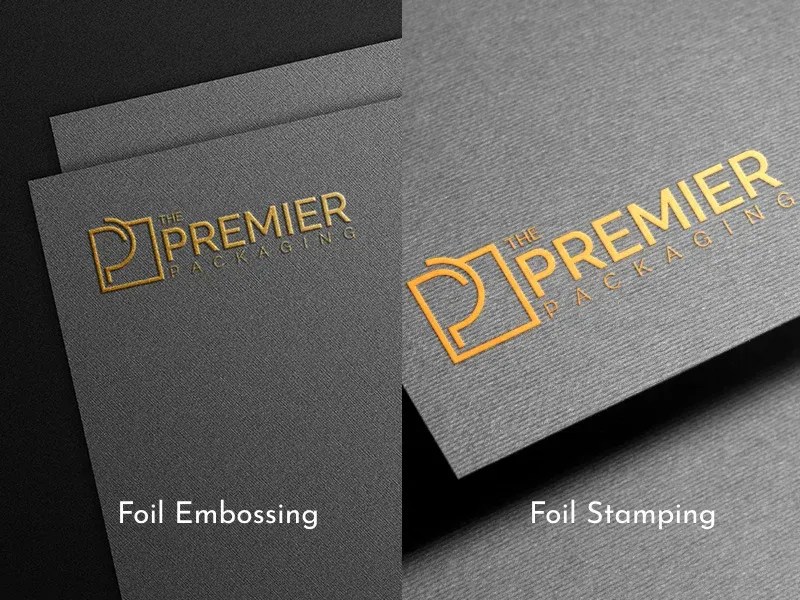

What is The Difference Between Foil Stamping and Foil Embossing?

In short, foil stamping gives a 2D look while foil embossing offers a 3D tactile feel of the printed structure on the substrate. Moreover:

Foil Stamping

As we’ve already discussed, foil or hot stamping is a dry printing method where a heated die presses a thin layer of metallic or pigmented foil onto the paper. It is a 2D process.

• The foil sits flush with the paper or is very slightly debossed (pushed in) depending on the pressure.
• Uses a single, flat metal die.
• Think of a shiny gold logo on a high-end business card that feels smooth to the touch.

Foil Embossing

Often called combo stamping, it combines foil application with a physical raise. It is a 3D process.

• The design is both foiled and physically raised above the surface of the paper.
• Requires a mating set that sandwiches the paper to reshape the fibers.
• Think of a seal on a diploma where the gold design literally pops off the page.

Which one should you use?

• Choose foil stamping if you want a clean, modern, and minimalist color or shine.
• Choose foil embossing if you want to convey prestige, traditional luxury, or a tactile experience that people can’t help but run their fingers over.

Now here’s a quick comparison between these two options.

Types of Foils Used in Hot Stamping

The type of foil selected dictates both the aesthetic and the functional durability.

Metallic Foil:

It features a vacuum-metalized aluminum layer to mimic precious metals.

• Gold/Silver: Most common for luxury branding.
• Copper/Rose Gold: Frequently used for premium, organic product lines.

Pigment Foil (Matte or Gloss):

Unlike metallic foils, these use paint/ink layers. They provide a high-opacity look that is more vibrant than standard printing.

• Gloss Pigment: Offers a wet, painted appearance.
• Matte Pigment: Provides a flat, non-reflective, modern finish.

Holographic Foil:

A metallic foil embossed with a diffraction pattern. It refracts light into a rainbow spectrum.

• Patterned: Features repeating shapes (stars, pillars, or sand).
• Seamless: A smooth, shifting color gradient often used for security seals or high-end tech packaging.

Pearl Foil:

A semi-transparent foil that adds a pearlescent, iridescent shimmer. It allows the color of the underlying paper to show through slightly, creating a soft, elegant glow.

Clear/Transparent Foil:

Used to create a spot UV effect. It adds a high-gloss layer to specific areas without changing the color of the design.

Which Foil Type You Should Choose?

When choosing a foil, the Substrate Compatibility is the primary constraint.

1. Uncoated/Textured Paper: Requires a hard-release foil to prevent the edges from bleeding.
2. Laminated/Coated Surfaces: Requires a soft-release foil with a high-tack adhesive layer to ensure the foil grips the plastic film.

Below are the main foil stamping types and when to use them.

Key Distinction: Hot Foil vs. Cold Foil

• Hot Foil Stamping: Uses physical heat and a metal die. It produces a superior tactile feel and higher brilliance, but is slower and requires tooling costs.
• Cold Foil Printing: Uses a UV-curable adhesive applied via a printing press. It is faster and cheaper for large runs but lacks the depth and extreme metallic shine.

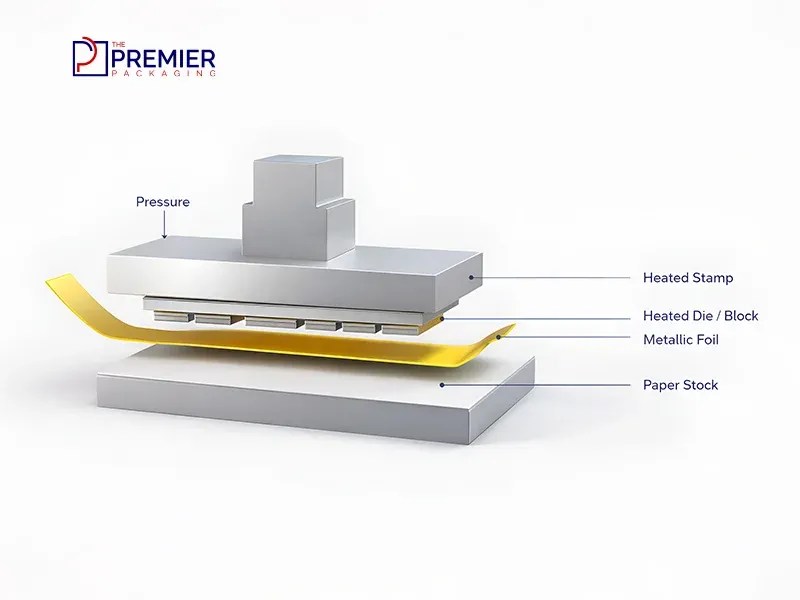

The Foil Stamping Process

The process of hot stamping can be summed up as a combination of heating the stamp, the die, and more.

The Die (The Master):  A metal plate etched with the desired image or text. It acts as the stamp that carries the heat.

• Magnesium: Used for short runs; heats quickly but wears down faster.
• Copper/Brass: Used for high-volume or high-detail projects. Brass is the industry standard for durability and heat retention.

The Foil (The Medium): A multi-layered material consisting of a polyester carrier film, a release layer, a color layer (pigment or metal), and a heat-activated adhesive.

The Substrate (The Paper Stock): The material being stamped.

• Texture: Smoother stocks allow for cleaner foil transfer.
• Porosity: High-porosity papers may require specific heat-activated adhesives to ensure a permanent bond.
• Grammage: Heavier weights (300gsm+) prevent the bruising or indentation of the paper on the reverse side.

How Does the Foil Stamping Process Work?

• Heating: The die is mounted to a heated plate (the honeycomb) and brought to a specific temperature, typically between 100°C and 150°C, depending on the foil and stock.
• Positioning: The foil is fed between the heated die and the paper stock.
• The Impression (Dwell Time): The press forces the die onto the paper. The heat melts the release layer and activates the adhesive.
• Stripping: As the die lifts, the polyester carrier film is pulled away, leaving the foil permanently fused only where the die made contact.
